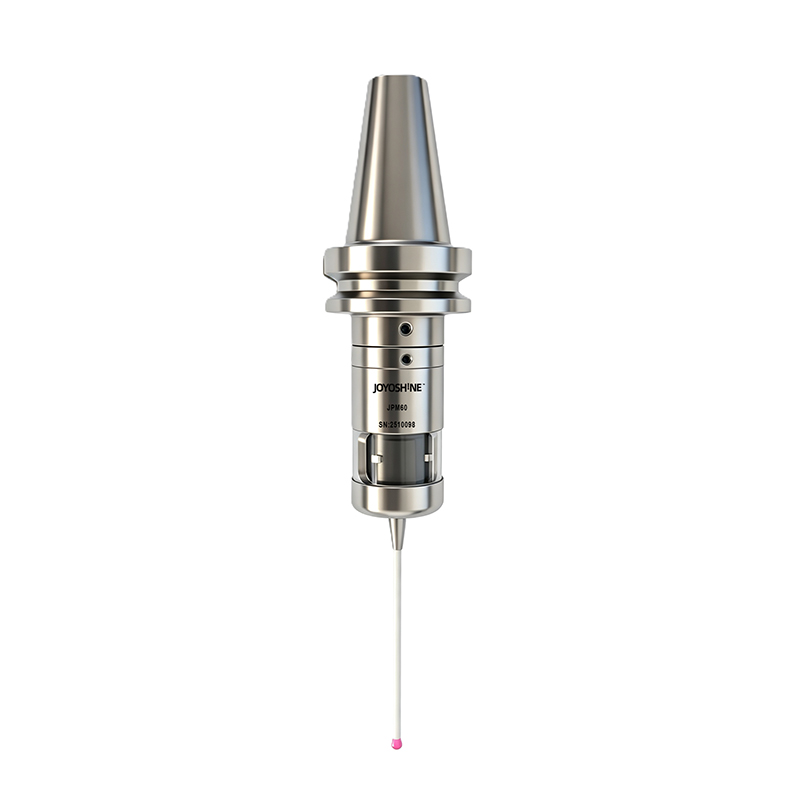

IR Touch Probe (JPM50/JPM60)

The optical transmission probe is an ultra-compact design probe that operates by optical signal transmission, which used for workpiece set-up inspection on small and medium machining centers.

Being switched-on and switched-off without requiring M-code control, it automatically measures the origin of the workpiece and dimensions after machining at high speed and with high precision.

Mainly, it allows machine tools and robots to reduce setup time, prevent machining defects, improve cycle time, and eliminate dependence on skilled operators and jigs.

IR CNC Touch Probe (JPM50/JPM60)

HighlightsKey FeaturesApplication Scenarios

Ultra-compact and lightweight design

Modular quick-swap design for fast maintenance, critical components are integrated into replaceable modules, reducing service time and cost

Ultra-low power consumption with auto sleep/wake

Smart collision protection: automatic emergency stop on abnormal contact, preventing crashes and protecting both probe and spindle

Simplified wiring: only 3 signal wires to CNC I/O, faster installation, fewer errors

1.00 μm (2σ) repeatability

Infrared Wireless Transmission

Stable and fast signal transmission without physical wiring, ensuring flexibility and ease of installation.

High Measurement Accuracy

Repeatability up to ±1μm (depending on model), suitable for precision machining industries.

360° Signal Coverage

Omnidirectional IR transmission ensures uninterrupted communication within the working envelope.

Robust Design

Sealed structure with high protection rating (typically IP68), resistant to coolant, dust, and chips.

Long Battery Life

Optimized power consumption for extended operation with minimal maintenance.

Easy Integration

Compatible with most CNC control systems (such as FANUC, Siemens, Mitsubishi, etc.).

1. Workpiece Setup and Alignment

Automatically detects part position and orientation, reducing setup time and eliminating human error. Ideal for complex fixtures and multi-axis machining.

2. Tool Setting and Calibration

Ensures accurate tool length and diameter measurement, improving machining consistency and reducing scrap rates.

3. In-Process Inspection

Performs real-time measurement during machining to detect deviations and enable automatic compensation.

4. First Article Inspection

Quickly verifies the first machined part to ensure compliance with design specifications before batch production.

5. High-Precision Industries

Widely used in:

Aerospace components
Automotive parts
Medical device manufacturing
Mold and die industry
Electronics precision parts

Product Specifications

	JPM50	JPM60
Size	Length：51.6mm Diameter:40mm	Length：68mm Diameter:40mm
Weight (without Shank & Batteries)	270g	320g
Transmission Type	360° infrared transmission	360° infrared transmission
Switch-on/switch-off	automatically	automatically
Stylus Overtravel Limits	XY±15°, Z+5.0mm	XY±15°, Z+5.0mm
Stylus trigger Force	XY=0.9N, Z=6.0N	XY=0.9N, Z=6.0N
Unidirectional Repeatability	≤1μm(2σ)	≤1μm(2σ)
Operating Range	1.0M(Short-range) 3.0M(Medium Range) 5.0M(Long-range)	1.0M(Short-range) 3.0M(Medium Range) 5.0M(Long-range)
Sealing	IP68	IP68
Operation Temperature	0°C to 60°C	0°C to 60°C
Battery	2 × ½ AA 3.6 V Lithium-thionyl chloride	2 × ½ AA 3.6 V Lithium-thionyl chloride
Battery Life	500 Days maximum (5% usage per shift)	300 Days maximum (5% usage per shift)
Special Feature	Collision Protection	Collision Protection
Multiple shank options	BT30, BT40	BT30, BT40, BBT40, BT50

* For special measurement requirements, customized probing solutions are available.

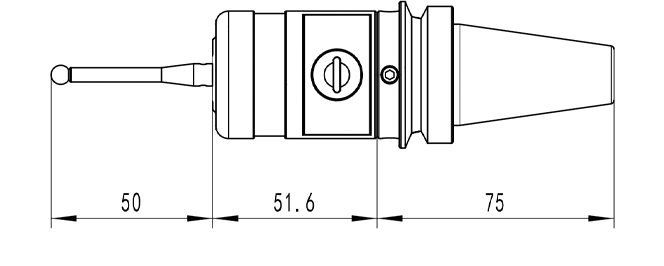

Dimension of IR CNC Touch Probe

FAQ of IR CNC Touch Probe

What is the difference between IR and radio (RF) CNC touch probes?

IR (Infrared): Line-of-sight, short range, no interference, ideal for small CNC machines.
RF (Radio Frequency): Non-line-of-sight, long range, strong anti-interference, suitable for large / 5-axis CNC machines.

Is the IR CNC Touch Probe compatible with my CNC machine?

Yes, the touch probe is designed to be compatible with most mainstream CNC controllers such as FANUC, Siemens, Mitsubishi, Brothers, and others.

What is the measurement accuracy of the CNC touch probe?

The repeatability of the CNC touch probe is ≤ 1 μm.

How is the touch probe powered?

The probe uses replaceable lithium batteries with low power consumption design, ensuring long service life.

Does coolant or chips affect the probe performance?

The probe features a sealed IP68-rated design, making it highly resistant to coolant, oil, and metal chips commonly found in CNC environments.
For infrared touch probe, if chips adhere to the probe or receiver surface, they must be cleaned promptly to prevent blockage of optical signals.

Is installation complicated?

No, the touch probe is designed for easy installation. Detailed manuals and technical support are provided to ensure reliable operation.

Can the stylus be customized?

Yes, Customized stylus is available.

Recommended Accessories

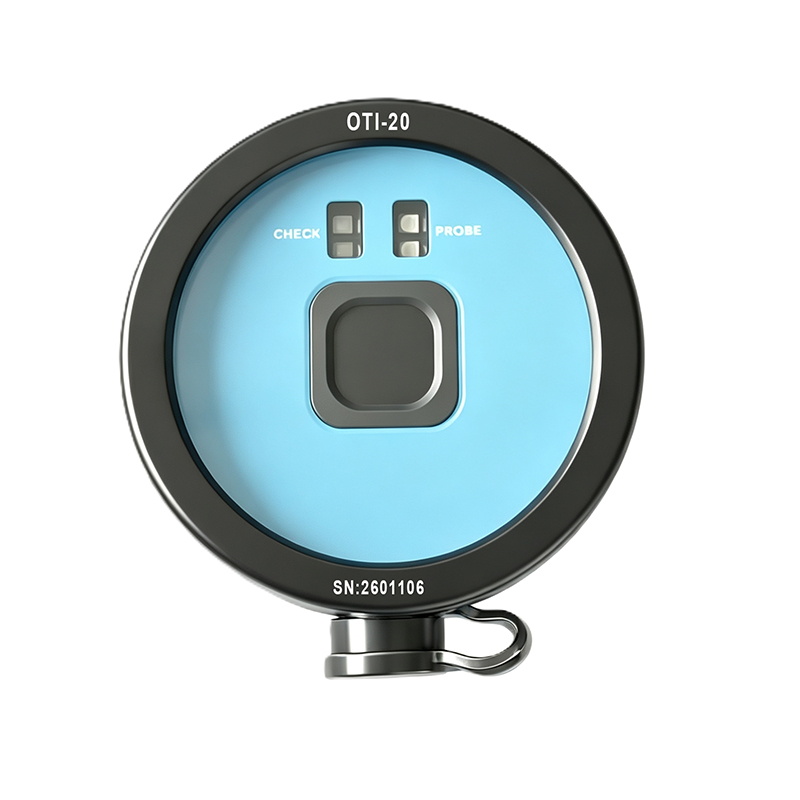

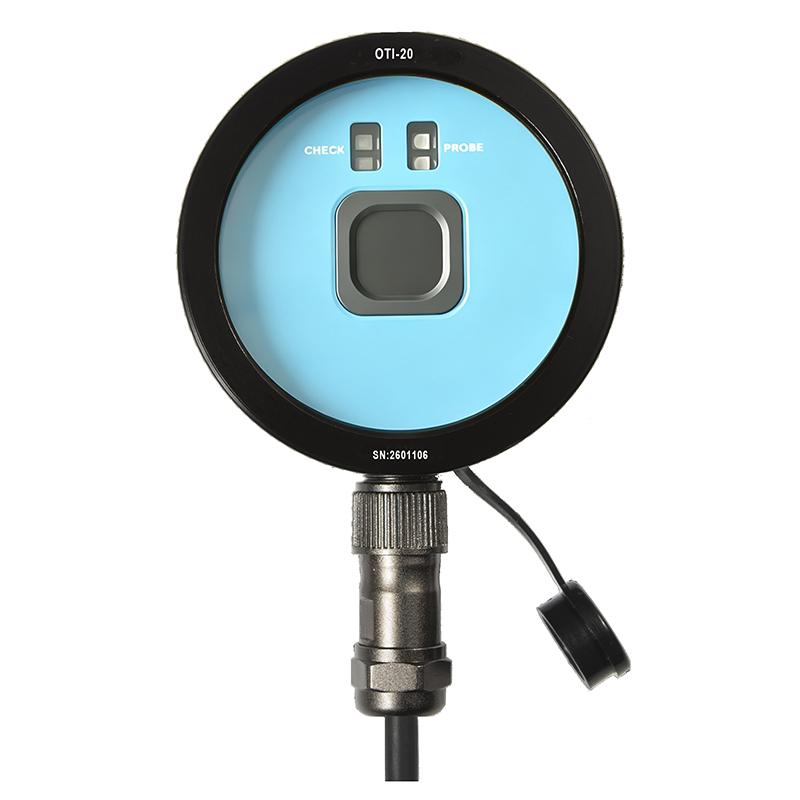

OTI-20 Receiver

OTI-20 ReceiverProduct Specifications

The OTI-20 serves as the essential interface between IR touch probes and the CNC controller. It receives modulated infrared signals, validates probe data to eliminate false triggers, and outputs a clean 24 V digital signal for precise, reliable measurement. Fully compatible with both JPM50 and JPM60 IR touch probes.

	OTI-20
Transmission Type	Infrared Optical Transmission
Startup	Power-on auto-start
Compatible Touch probes	JPM50, JPM60
Rating	DC24V±10% 30mA(max)
Operating Range	150°
LEDs Indication	Green: Power-on, Ready Red: Signal Alternating: Low Battery
Sealing	IP68
Operation Temperature	0°C to 60°C
Cable	5.0M, 4-core screened cable, Ø5.8mm
Mounting	1*M5 screw
