The CT-20 is a mono-directional touch-trigger tool setter used for setting tool length, checking the breakage and compensate for thermal growth on a CNC machining center.
Tool Setting Probe (CT-20)
Highlights
- Prevents machining defects due to thermal displacement and wear.
- Eliminates operator burden by reducing setup time by 90%, including conventional test cutting and manual measurement.
- Eliminates dangerous on-machine tool setting.
- Proven kinematic design.
- Ultra compact design for a wide range application.
- Cost-effective and reduce scrap.
- 1.00 μm 2σ repeatability.
- Automatically air blasting (Optional).
Product Specifications
| Contact diameter (Max) | Φ20mm |
| Transmission Type | Hard-wired |
| Repeatability | 2.0μm(2σ), At operating of speed 50-200mm/min |
| Sense Direction | +Z axis |
| Trigger Force | 1.5N |
| Life Time | >500 million |
| Height | 68mm |
| Pretravel | 5mm |
| Rating | DC24V±10% 20mA(max) |
| Air Blasting | Integrated |
| Sealing | IP67 |
| Cable | 5M x 6-core screened cable |
| Operating Temperature | 0°C to 60°C |
| Mounting | M5 x 25mm cap head screws(x4) |

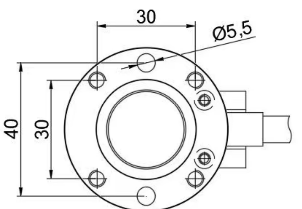

Dimension of Tool Setting Probe (CT-20)
