The CTS-5 is a multi-directional touch-trigger tool setter with hard-wired I/O connectivity, delivering reliable broken tool detection and rapid, high-repeatability measurement of tool length and diameter.
It is suitable for a wide range of machine tools, including vertical machining centers (VMCs), horizontal machining centers (HMCs), and gantry-type machines—requiring only standard CNC I/O signals for quick setup and operation.

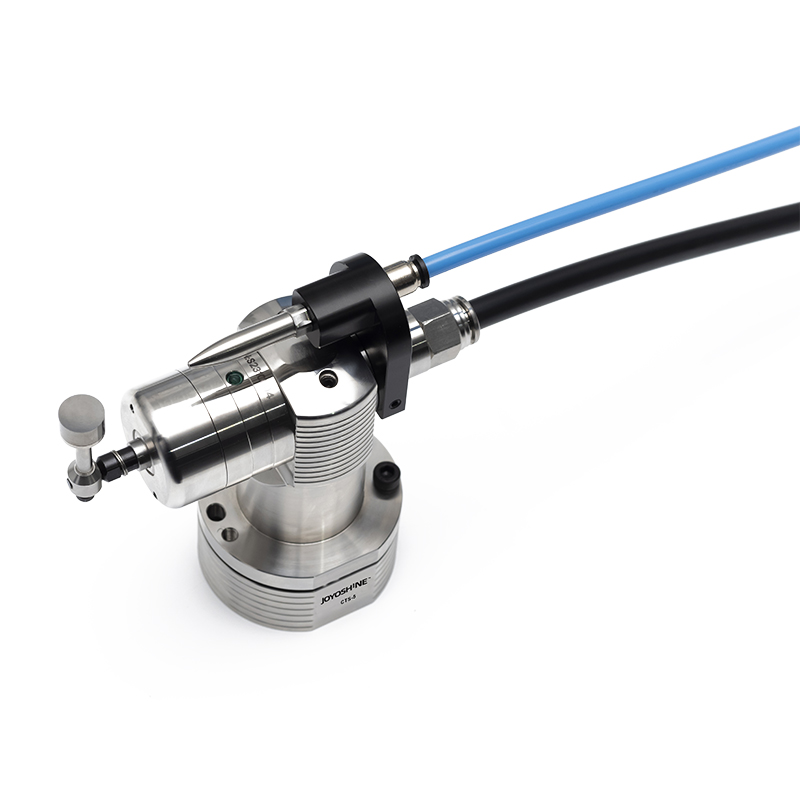

Tool Setting Probe (CTS-5)
Highlights
- Prevents machining defects due to thermal displacement and wear.
- Eliminates operator burden by reducing setup time by 90%, including conventional test cutting and manual measurement.
- Eliminates dangerous on-machine tool setting.
- Proven kinematic design.
- Interference resistant hard-wired transmission.
- Cost-effective and reduce scrap.
- 1.00 μm 2σ repeatability.
- Automatically air blasting (Optional).
Product Specifications
| Transmission Type | Hard-wired transmission | |
| Compatible Interfaces | IF40 | |
| Recommended stylus | Disc stylus (Carbide,HRC75） | |
| Weight (Including Stylus) | 375g | |
| Sense directions | XY±12.5°, Z+5.0mm | |
| Unidirectional Repeatability | 1.0μm(2σ) | |
| Stylus Trigger Force | 1.5N | |
| Air Blasting | Optional | |
| Sealing | IP68 | |
| Cable | Specification | Ø 4.5mm，3-core screened cable, each core 7 x 0.3 mm |
| Length | 8M | |
| Mounting | M12 T bold | |
| Operation Temperature | 0°C to 60°C | |

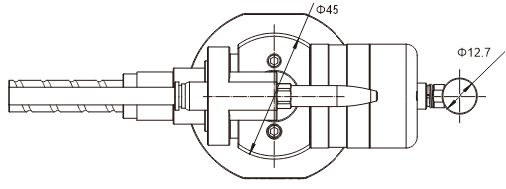

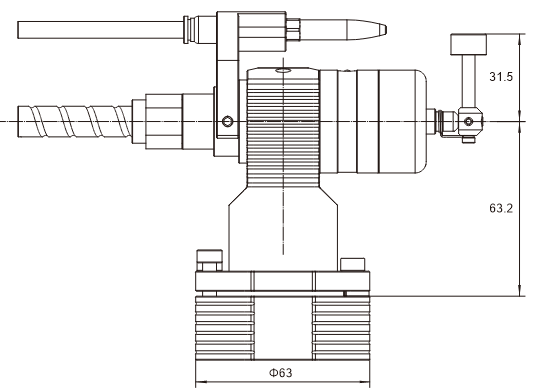

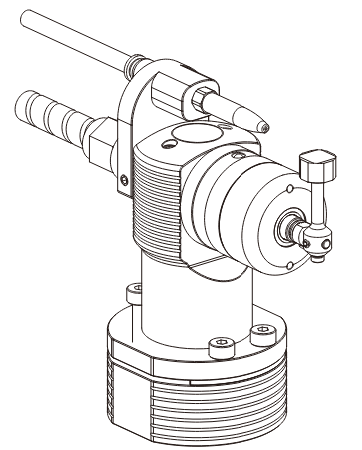

Dimension of Tool Setting Probe (CTS-5)
